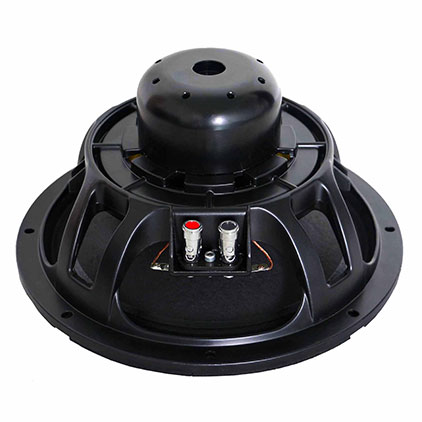

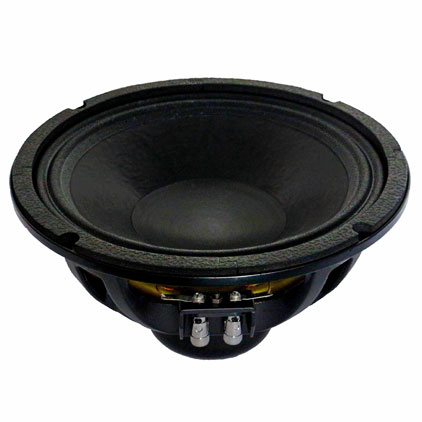

Home> PRODUCTS> Speaker  W-10-080A-16-65

MECHANICAL SPECIFICATIONS

Overall diameter

260.5 mm

Bolt circle diameter

244.5 mm

Baffle cutout diameter

231 mm

Depth

124 mm

Flange and Gasket

10 mm

Net weight

3 kg

Shipping box (single carton box)

280x280x160 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

10 inch

Nominal impedance

16 Ω

DC resistance

12 Ω

Nominal power handling

300 W

Continuous power handling

600 W

Sensitivity (1W/1m)

98± 2dB

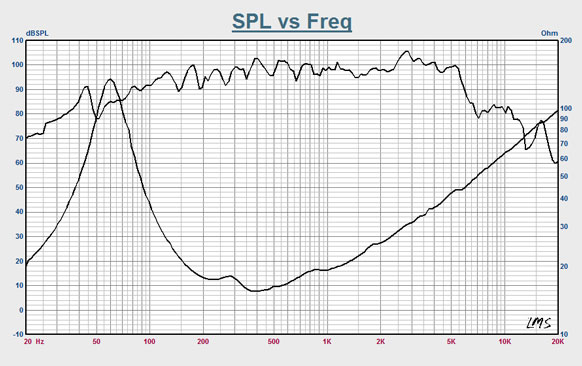

Frequency range (-10dB max)

60-5200 Hz

Voice coil diameter

65.5 mm

Voice coil material

Outside 1 Layer ALR

Former material

KSV

Winding depth

14 mm

T yoke

10 mm

Plate

8 mm

Magnet

NDFEB

Basket

Aluminium

THIELE & SMALL PARAMETERS

Fo

59 Hz

Revc

12 Ω

Sd

34.64 m M²

Vas

38.58 L

Cms

226.49 u M/N

Mmd

28.14 m Kg

Mms

31.84 g

Bl

20.86 N/A

Qms

2.83

Qes

0.32

Qts

0.29

Levc

778.39 u H

No

2.37%

Xmax

±3 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
