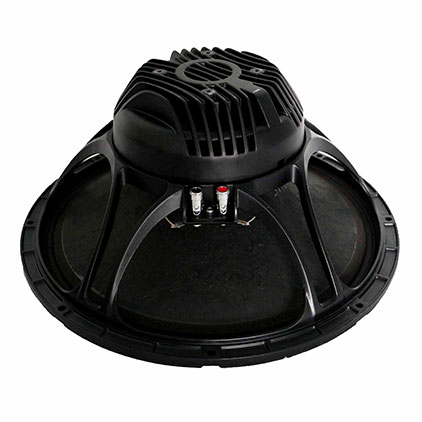

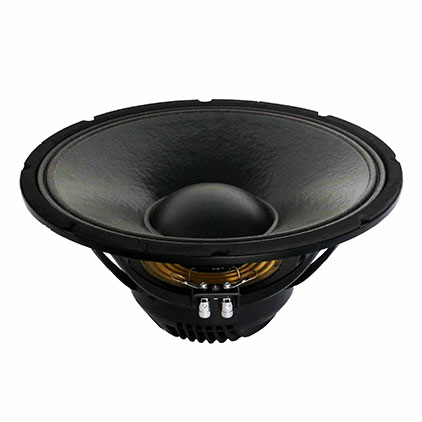

Home> PRODUCTS> Speaker  W-15-363A-8-75

MECHANICAL SPECIFICATIONS

Overall diameter

388 mm

Bolt circle diameter

373 mm

Baffle cutout diameter

354 mm

Depth

167 mm

Flange and Gasket

12 mm

Net weight

4.6 kg

Shipping box (single carton box)

435x435x255 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

15 inch

Nominal impedance

8 Ω

DC resistance

5.6 Ω

Nominal power handling

350 W

Continuous power handling

700 W

Sensitivity (1W/1m)

100 ± 2dB

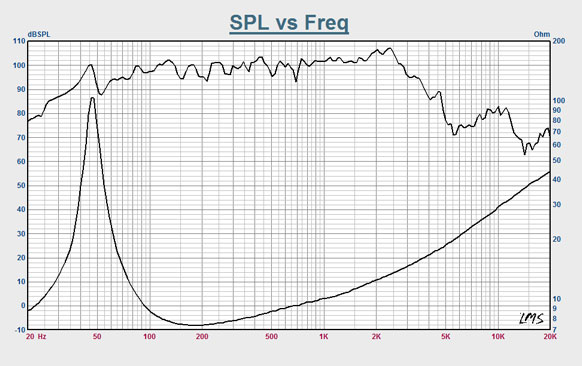

Frequency range (-10dB max)

46-2800 Hz

Voice coil diameter

75 mm

Voice coil material

Outside 1 Layer ALR

Former material

TIL

Winding depth

20 mm

T yoke

25 mm

Plate

10 mm

Magnet

NDFEB

Basket

Cast aluminium

THIELE & SMALL PARAMETERS

Fo

46 Hz

Revc

5.6 Ω

Sd

89.1 m M²

Vas

143.2 L

Cms

126.7 u M/N

Mmd

75.2 m Kg

Mms

90.6 g

Bl

16.8 N/A

Qms

6.8

Qes

0.54

Qts

0.5

Levc

338.6 u H

No

2.62%

Xmax

±5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
