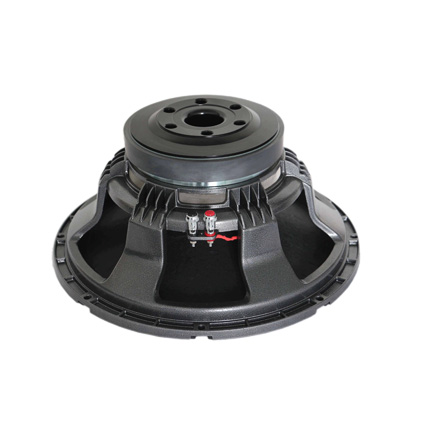

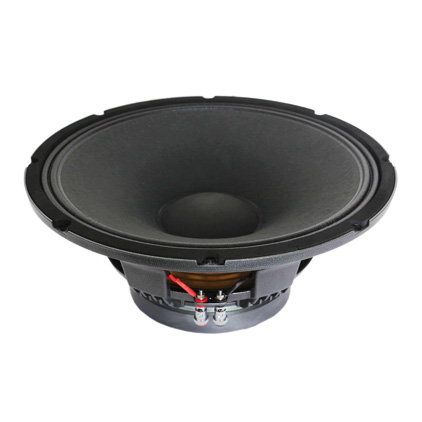

Home> PRODUCTS> Speaker  W-15-369A-8-75

MECHANICAL SPECIFICATIONS

Overall diameter

388 mm

Bolt circle diameter

372 mm

Baffle cutout diameter

354 mm

Depth

171 mm

Flange and Gasket

15 mm

Net weight

7.9 kg

Shipping box (single carton box)

420x420x240 mm

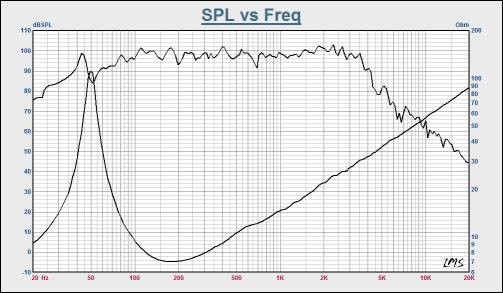

ELECTRICAL SPECIFICATIONS

Nominal diameter

15 inch

Nominal impedance

8 Ω

DC resistance

5.6 Ω

Nominal power handling

400 W

Continuous powder handling

800 W

Sensitivity (1W/1m)

99±2dB

Frequency range (-10dB max)

49-3500 Hz

Voice coil diameter

75 mm

Voice coil material

Outside 2 Layer  Cu

Former material

KSV

Winding depth

18 mm

T yoke

13 mm

Plate

10 mm

Magnet

190x85x25(100OZ) mm

Basket

zinc alloy

THIELE & SMALL PARAMETERS

Fo

49 Hz

Revc

5.6 Ω

Sd

85.5 m M2

Vas

108.6 L

Cms

104.5 u M/N

Mmd

86.03 m Kg

Cms

104.5 u M/N

Mmd

86.03 m Kg

Mms

100.4 g

Bl

19.3 N/A

Qms

6.62

Qes

0.46

Qts

0.43

Levc

815.8 u H

No

2.69%

Xmax

±4 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
