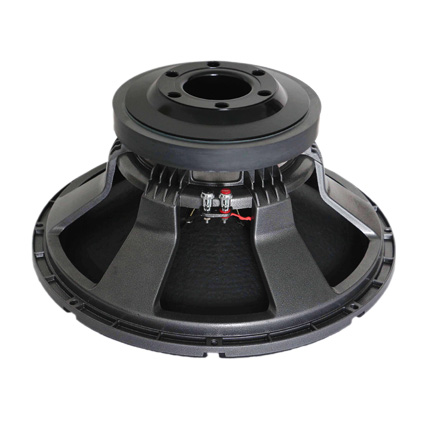

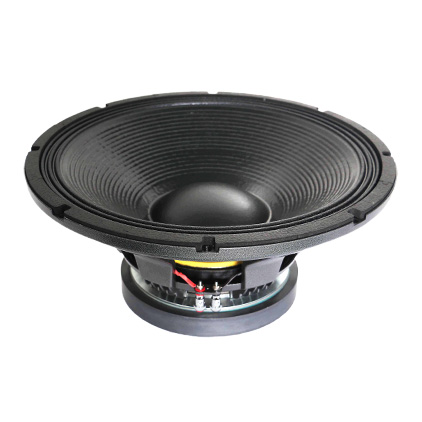

Home> PRODUCTS> Speaker  W-18-230A-8-114

MECHANICAL SPECIFICATIONS

Overall diameter

461 mm

Bolt circle diameter

445 mm

Baffle cutout diameter

427 mm

Depth

213 mm

Flange and Gasket

19 mm

Net weight

14 kg

Shipping box (single carton box)

500x500x275 mm

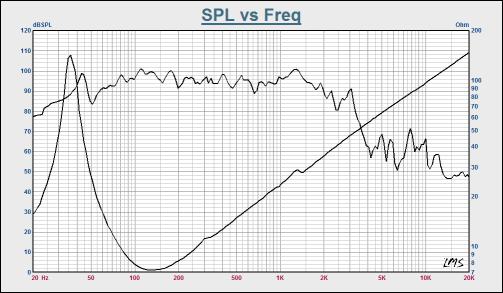

ELECTRICAL SPECIFICATIONS

Nominal diameter

18 inch

Nominal impedance

8 Ω

DC resistance

5.4 Ω

Nominal power handling

1200 W

Continuous power handling

2400 W

Sensitivity (1W/1m)

98 ± 2dB

Frequency range (-10dB max)

35-2000 Hz

Voice coil diameter

114.5 mm

Voice coil material

Inside/Outside   1  Layer  Cu

Former material

BAF

Winding depth

25 mm

T yoke

23 mm

Plate

15 mm

Magnet

245x122x30(185OZ) mm

Basket

zinc alloy

THIELE & SMALL PARAMETERS

Fo

35 Hz

Revc

5.4 Ω

Sd

124.4 m M²

Vas

260.9 L

Cms

118.7 u M/N

Mmd

165.9 m Kg

m Kg

165.9 g

Bl

24.4 N/A

Qms

6.76

Qes

0.33

Qts

0.32

Levc

1.52 m H

No

3.43%

Xmax

±5.5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
