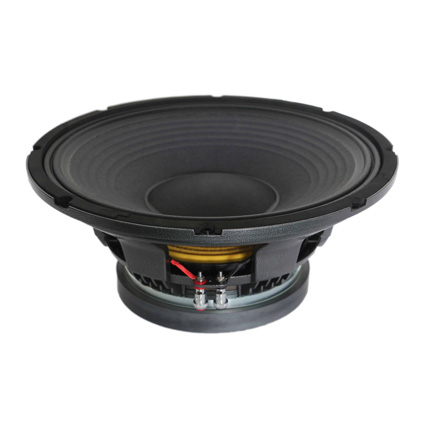

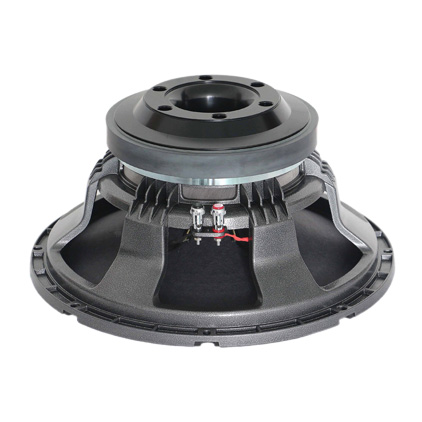

Home> PRODUCTS> Speaker  W-15-370A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

388 mm

Bolt circle diameter

372 mm

Baffle cutout diameter

354 mm

Depth

177 mm

Flange and Gasket

15 mm

Net weight

11 kg

Shipping box (single carton box)

420x420x240 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

15 inch

Nominal impedance

8 Ω

DC resistance

5.6 Ω

Nominal power handling

600 W

Continuous power handling

1200 W

Sensitivity (1W/1m)

99± 2dB

Frequency range (-10dB max)

55-3000 Hz

Voice coil diameter

100 mm

Voice coil material

Outside 2 Layer Cu

Former material

KSV

Winding depth

19 mm

T yoke

23 mm

Plate

12 mm

Magnet

220x110x25(125OZ) mm

Basket

zinc alloy

THIELE & SMALL PARAMETERS

Fo

55 Hz

Revc

5.6 Ω

Sd

85.5 m M²

Vas

69.9 L

Cms

67.3 uM/N

Mmd

108.4 mKg

Mms

122.7 g

Bl

25.3 N/A

Qms

5.6

Qes

0.37

Qts

0.34

Levc

1.11 m H

No

3.09%

Xmax

±4 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
