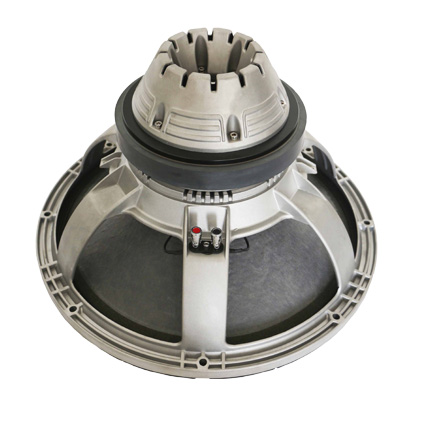

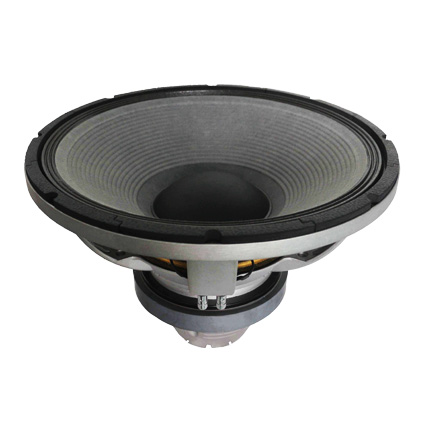

Home> PRODUCTS> Speaker  W-18-217A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

462 mm

Bolt circle diameter

440 mm

Baffle cutout diameter

414 mm

Depth

255 mm

Flange and Gasket

22 mm

Net weight

13.4 kg

Shipping box (single carton box)

500x500x285 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

18 inch

Nominal impedance

8 Ω

DC resistance

4.8 Ω

Nominal power handling

1000 W

Continuous power handling

2000 W

Sensitivity (1W/1m)

96±2dB

Frequency range (-10dB max)

35-2000 Hz

Voice coil diameter

100 mm

Voice coil materia

Inside/Outside 1 Layer  Cu

Former material

BAF

Winding depth

32+32 mm

T yoke

22 mm

Plate

22 mm

Magnet

220x110x25(125OZ) mm

Basket

Cast aluminium

THIELE & SMALL PARAMETERS

Fo

35 Hz

Revc

4.8 Ω

Sd

128.8 m M²

Vas

209.9 L

Cms

89.1 u M/N

Mmd

227.9 g

Bl

21.9 N/A

Qms

8.2

Qes

0.5

Qts

0.47

Levc

960.6 u H

No

1.77%

Xmax

±5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
