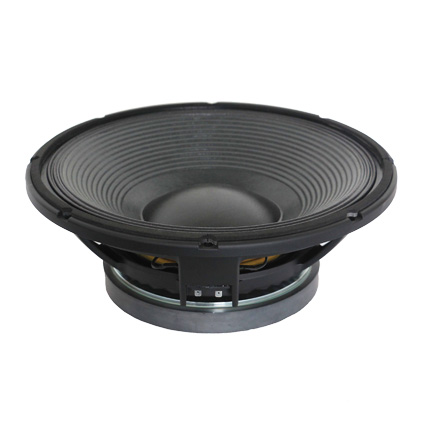

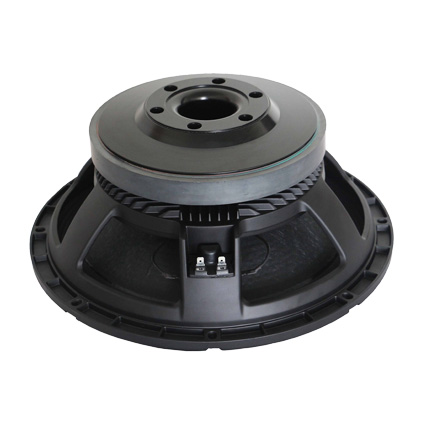

Home> PRODUCTS> Speaker  W-15-356A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

395 mm

Bolt circle diameter

374 mm

Baffle cutout diameter

355 mm

Depth

150 mm

Flange and Gasket

16 mm

Net weight

12.5 kg

Shipping box (single carton box)

435x435x255 mm

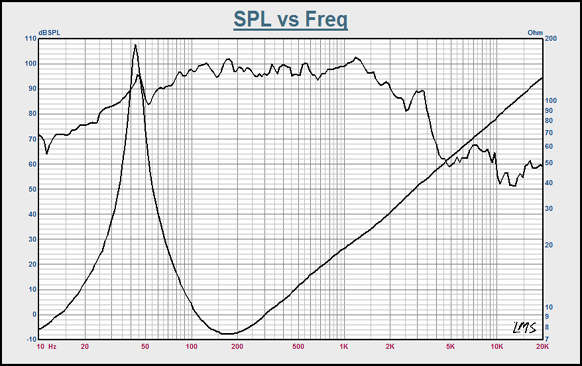

ELECTRICAL SPECIFICATIONS

Nominal diameter

15 inch

Nominal impedance

8 Ω

DC resistance

5.5 Ω

Nominal power handling

800 W

Continuous power handling

1600 W

Sensitivity (1W/1m)

98 ± 2dB

Frequency range (-10dB max)

42-2000 Hz

Voice coil diameter

100 mm

Voice coil material

Inside/Outside 1 Layer Cu

Former material

TIL

Winding depth

25 mm

T yoke

23 mm

Plate

12 mm

Magnet

245x122x25(155OZ ) mm

Basket

Cast aluminium

THIELE & SMALL PARAMETERS

Fo

42 Hz

Revc

5.5 Ω

Sd

88.14 m M²

Vas

91.6 L

Cms

83.08 u M/N

Mmd

150.47 m Kg

Mms

165.52 g

Bl

28.06 N/A

Qms

7.3

Qes

0.31

Qts

0.29

Levc

1.28 mH

No

2.24%

Xmax

±6.5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
