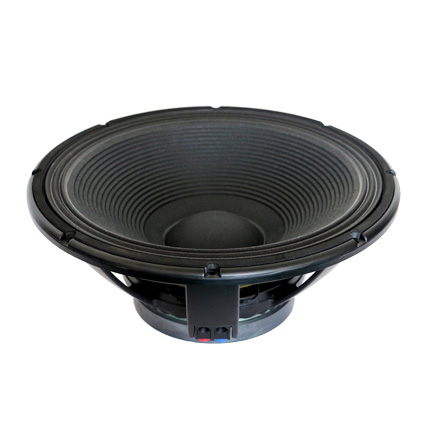

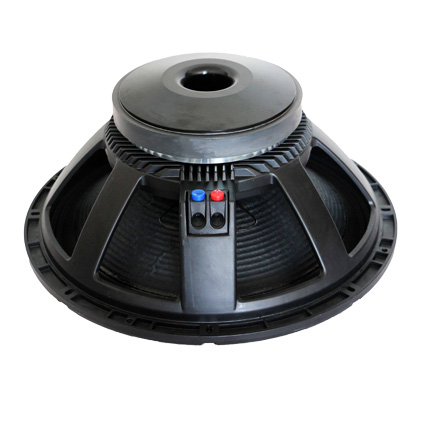

Home> PRODUCTS> Speaker  W-18-241A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

465 mm

Bolt circle diameter

445 mm

Baffle cutout diameter

420 mm

Depth

188 mm

Flange and Gasket

20 mm

Net weight

12.8 kg

Shipping box (single carton box)

500x500x230 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

18 inch

Nominal impedance

8 Ω

DC resistance

4.9 Ω

Nominal power handling

1000 W

Continuous power handling

2000 W

Sensitivity (1W/1m)

98 ± 2dB

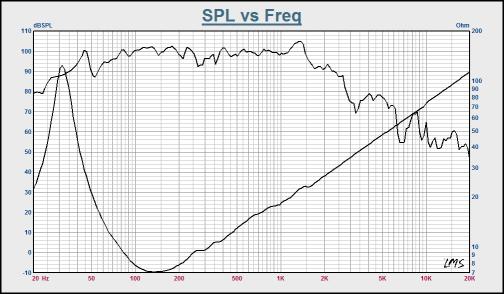

Frequency range (-10dB max)

30-2000 Hz

Voice coil diameter

99 mm

Voice coil material

Inside/Outside 1 layer cu

Former material

GF

Winding depth

24 mm

T yoke

22 mm

Plate

12 mm

Magnet

220*110*25(125OZ)

Basket

Cast aluminium

Midrange & Tweeter

THIELE & SMALL PARAMETERS

Fo

31 Hz

Revc

4.9 Ω

Sd

122.54 m M²

Vas

380.84 L

Cms

178.6 u M/N

Mmd

120.4 m Kg

Mms

145.6 g

Bl

22.9 N/A

Qms

4.91

Qes

0.26

Qts

0.25

Levc

1.085 m  H

No

4.24%

Xmax

±6 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
