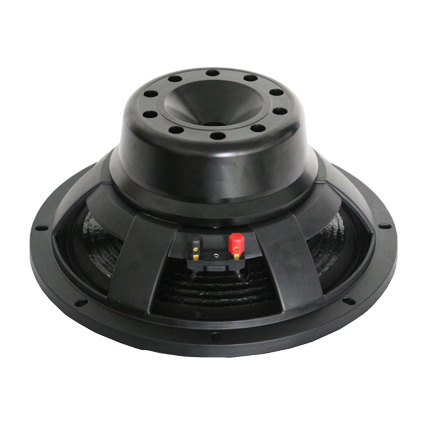

Home> PRODUCTS> Speaker  W-12-231A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

320 mm

Bolt circle diameter

300 mm

Baffle cutout diameter

286 mm

Depth

124 mm

Flange and Gasket

15 mm

Net weight

9.2 kg

Shipping box (single carton box)

340x340x150 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

12 inch

Nominal impetance

8 Ω

DC resistance

5.4 Ω

Nominal power handling

800 W

Continuous power handling

1600 W

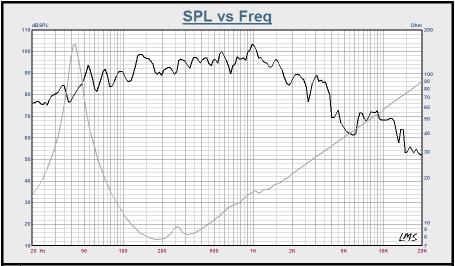

Sensitivity (1W/1m)

95± 2dB

Frequency range (-10dB max)

45-2000 Hz

Voice coil diameter

100 mm

Voice coil material

Inside & Outside 1 Layer Cu

Former material

TIL

Winding depth

25 mm

T yoke

22 mm

Plate

16 mm

Magnet

NDFEB

Basket

Cast aluminium

THIELE & SMALL PARAMETERS

Fo

42.02 Hz

Revc

5.6 Ω

Sd

53.09 m M²

Vas

59.11 L

Cms

147.67 u M/N

Mmd

90.13 m Kg

Mms

97.12 g

Bl

23 N/A

Qms

5.88

Qes

0.271

Qts

0.259

Levc

820.06 mH

No

1.57%

Xmax

±4.5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
