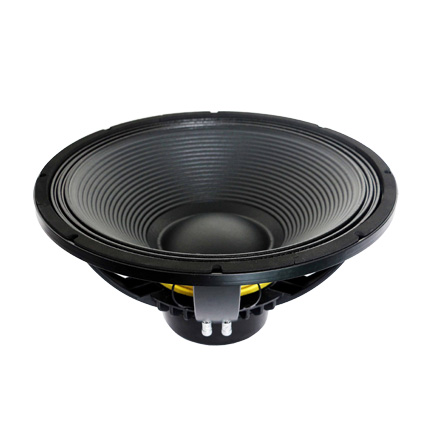

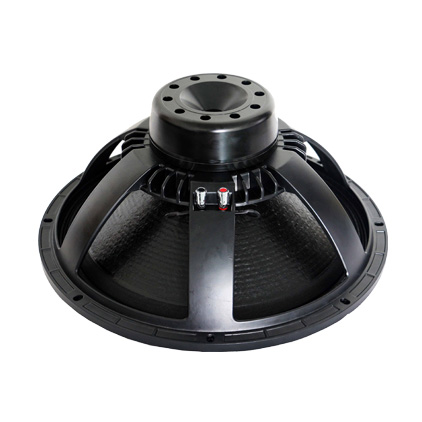

Home> PRODUCTS> Speaker  W-15-389A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

396 mm

Bolt circle diameter

376 mm

Baffle cutout diameter

358 mm

Depth

163 mm

Flange and Gasket

18 mm

Net weight

8 kg

Shipping box (single carton box)

420x420x195 mm

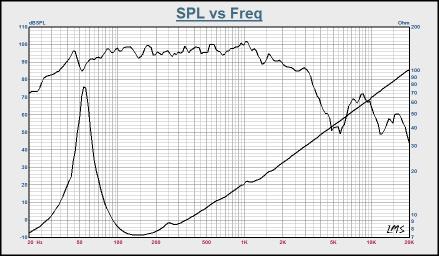

ELECTRICAL SPECIFICATIONS

Nominal diameter

15 inch

Nominal impedance

8 Ω

DC resistance

5.2 Ω

Nominal power handling

800 W

Continuous power handling

1600 W

Sensitivity (1W/1m)

99 ± 2dB

Frequency range (-10dB max)

45-2000 Hz

Voice coil diameter

100 mm

Voice coil material

Inside/Outside Cu

Former material

TIL

Winding depth

25 mm

T yoke

22 mm

Plate

12 mm

Magnet

NDFEB

Basket

Cast aluminium

THIELE & SMALL PARAMETERS

Fo

45 Hz

Revc

5.2 Ω

Sd

122.5 m M²

Vas

131.8 L

Cms

61.8 u M/N

Mmd

117.18 m Kg

Mms

141.8 g

Bl

20.06 N/A

Qms

5.6

Qes

0.61

Qts

0.55

Levc

964.43 u H

No

3.20%

Xmax

±6.5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
