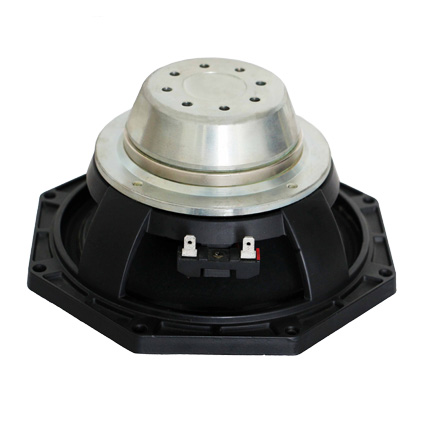

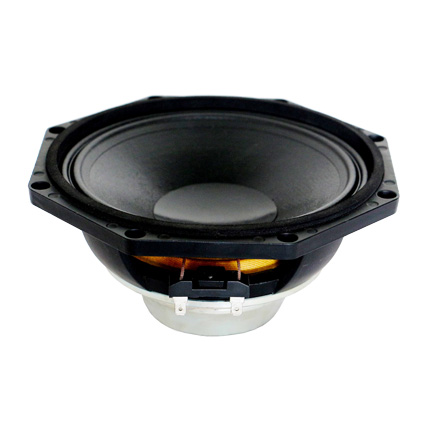

Home> PRODUCTS> Speaker  W-08-039A-8-50

MECHANICAL SPECIFICATIONS

Overall diameter

225X209 mm

Bolt circle diameter

210 mm

Baffle cutout diameter

187 mm

Depth

94 mm

Flange and Gasket

14 mm

Net weight

2.5 kg

Shipping box (single carton box)

220x220x125 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

8 inch

Nominal impedance

8 Ω

DC resistance

7.5 Ω

Nominal power handling

200 W

Continuous power handling

400 W

Sensitivity (1W/1m)

94± 2dB

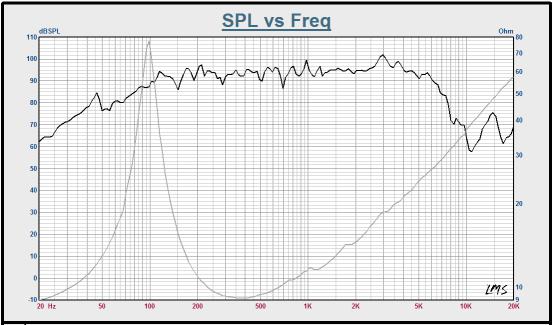

Frequency range (-10dB max)

90-60000 Hz

Voice coil diameter

50.5 mm

Voice coil material

Outside 2 Layer CU

Former material

katpon

Winding depth

14 mm

T yoke

10 mm

Plate

8 mm

Magnet

NDFEB  N38H

Basket

Cast aluminium

THIELE & SMALL PARAMETERS

Fo

96.5 Hz

Revc

7.5 Ω

Sd

21.38 m M²

Vas

105.2 L

Cms

162.08 u M/N

Mmd

14.96 m Kg

Mms

16.76 g

Bl

11.05 N/A

Qms

4.18

Qes

0.625

Qts

0.544

Levc

457.85 u H

No

1.56%

Xmax

±3 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
