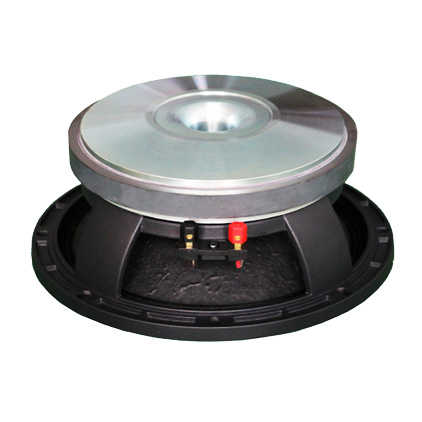

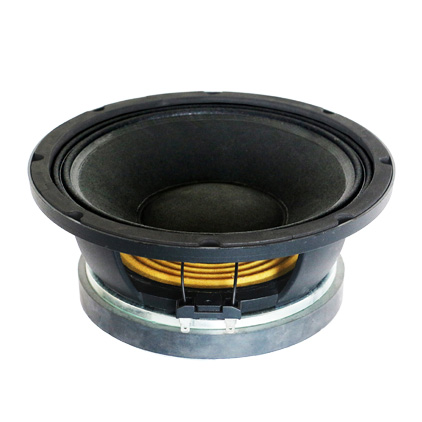

Home> PRODUCTS> Speaker  W-10-058B-8-75

MECHANICAL SPECIFICATIONS

Overall diameter

262 mm

Bolt circle diameter

245 mm

Baffle cutout diameter

234 mm

Depth

110 mm

Flange and Gasket

14 mm

Net weight

7.3 kg

Shipping box (single carton box)

280X280X145 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

10 inch

Nominal impedance

8 Ω

DC resistance

5.2 Ω

Nominal power handling

300 W

Continuous power handling

600 W

Sensitivity (1W/1m)

100 ± 2dB

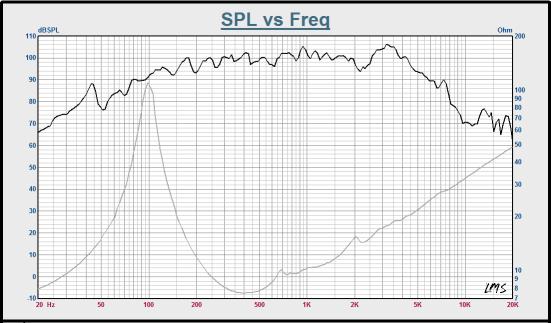

Frequency range (-10dB max)

90-5000 Hz

Voice coil diameter

75.5 mm

Voice coil material

Inside/outside AL

Former material

Glass fibre

Winding depth

11 mm

T yoke

16 mm

Plate

10 mm

Magnet

90 oz

Basket

Aluminium

THIELE & SMALL PARAMETERS

Fo

96.5 Hz

Revc

5.2 Ω

Sd

34.63 m M²

Vas

12.15 L

Cms

71.25 u M/N

Mmd

34.4 m Kg

Mms

38 g

Bl

19.89 N/A

Qms

4.5

Qes

0.304

Qts

0.285

Levc

389.89 u H

No

3.48%

Xmax

±1 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
