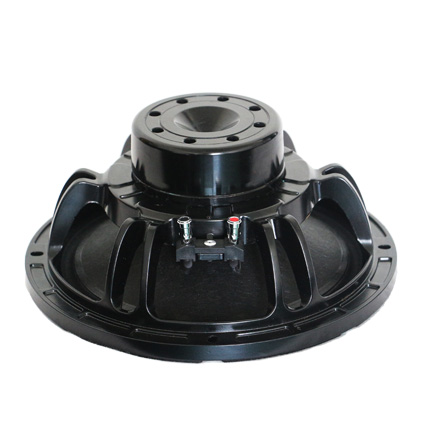

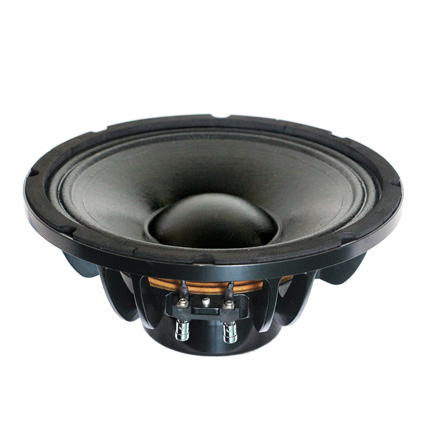

Home> PRODUCTS> Speaker  W-10-079A-8-65

MECHANICAL SPECIFICATIONS

Overall diameter

260 mm

Bolt circle diameter

246 mm

Baffle cutout diameter

232 mm

Depth

102 mm

Flange and Gasket

14 mm

Net weight

3 kg

Shipping box (single carton box)

280x280x130 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

10 inch

Nominal impedance

8 Ω

DC resistance

5.6 Ω

Nominal power handling

300 W

Continuous power handling

600 W

Sensitivity (1W/1m)

96± 2dB

Frequency range (-10dB max)

55-2500Hz

Voice coil diameter

65.5 mm

Voice coil material

Inside/outside cu

Former material

TIL

Winding depth

14 mm

T yoke

10 mm

Plate

10 mm

Magnet

NDFEB

Basket

Aluminium

THIELE & SMALL PARAMETERS

Fo

52.7 Hz

Revc

5.6 Ω

Sd

34.64 m M²

Vas

54.73 L

Cms

321.29 u M/N

Mmd

25.68 m Kg

Mms

29.39 g

Bl

12.6 N/A

Qms

2.75

Qes

0.34

Qts

0.3

Levc

549.17 u H

No

2.18%

Xmax

±2 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
