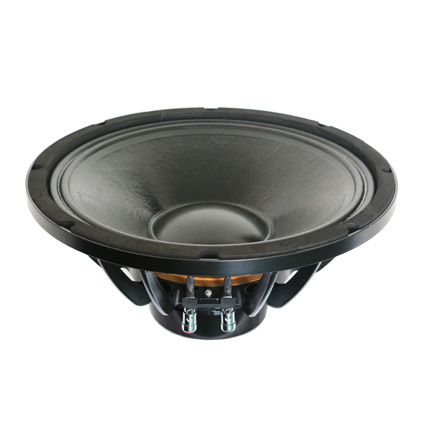

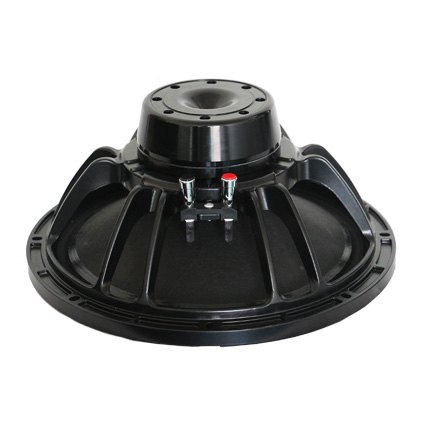

Home> PRODUCTS> Speaker  W-12-214A-8-75

MECHANICAL SPECIFICATIONS

Overall diameter

315 mm

Bolt circle diameter

298 mm

Baffle cutout diameter

283 mm

Depth

130 mm

Flange and Gasket

14 mm

Net weight

5 kg

Shipping box (single carton box)

340x340x165 mm

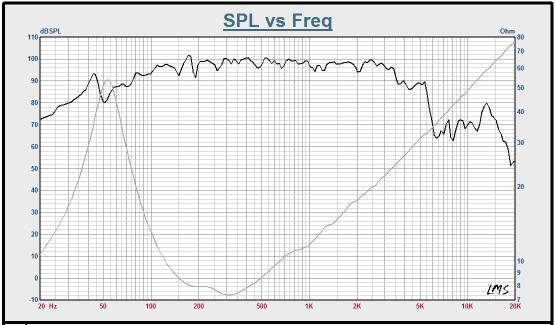

ELECTRICAL SPECIFICATIONS

Nominal diameter

12 inch

Nominal impedance

8 Ω

DC resistance

5 Ω

Nominal power handling

350 W

Continuous power handling

700 W

Sensitivity (1W/1m)

98 ± 2dB

Frequency range (-10dB max)

50-5000 Hz

Voice coil diameter

75.5 mm

Voice coil materia

Inside/Outside 1 layer Cu

Former material

BAF

Winding depth

16 mm

T yoke

12 mm

Plate

10 mm

Magnet

NDFEB oz

Basket

Cast aluminium

THIELE & SMALL PARAMETERS

Fo

51.8 Hz

Revc

5.6 Ω

Sd

53.09 m M²

Vas

92.02 L

Cms

229.89 u M/N

Mmd

33.98 m Kg

Mms

41.02 g

Bl

14.65 N/A

Qms

2.46

Qes

0.34

Qts

0.31

Levc

691.2 u H

No

3.50%

Xmax

±3.5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
