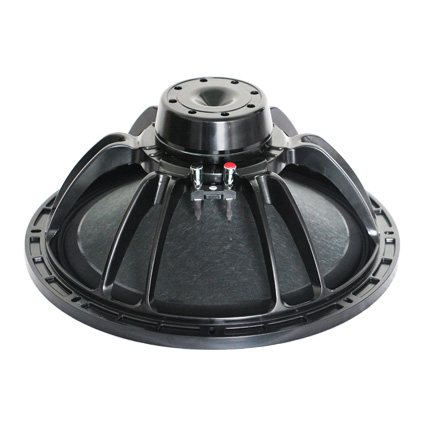

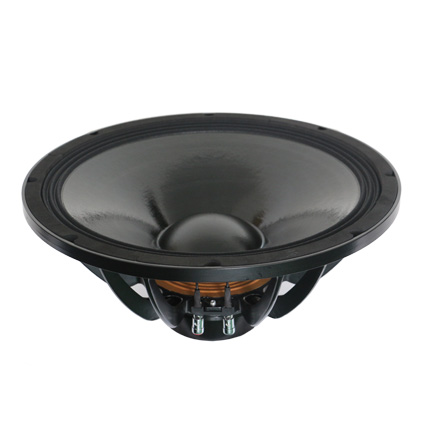

MECHANICAL SPECIFICATIONS

Overall diameter

394 mm

Bolt circle diameter

374 mm

Baffle cutout diameter

358 mm

Depth

163 mm

Flange and Gasket

18 mm

Net weight

4.7 kg

Shipping box (single carton box)

420x420x190 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

15 inch

Nominal impedance

8 Ω

DC resistance

5.6 Ω

Nominal power handling

350 W

Continuous power handling

700 W

Sensitivity (1W/1m)

99 ± 2dB

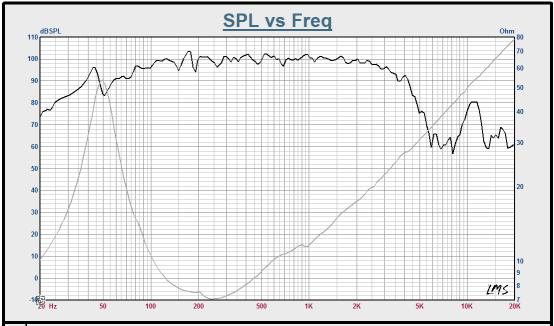

Frequency range (-10dB max)

50-4000 Hz

Voice coil diameter

75 mm

Voice coil material

Inside Outside 1 Layer  Cu

Former material

GAF

Winding depth

16 mm

T yoke

12 mm

Plate

10 mm

Magnet

NDFEB

Basket

Cast aluminium

Midrange & Tweeter

THIELE & SMALL PARAMETERS

Fo

48.24 Hz

Revc

5.6 Ω

Sd

85.53 m M²

Vas

138.15 L

Cms

132.98 u M/N

Mmd

67.45 m Kg

Mms

81.85 g

Bl

17.33 N/A

Qms

2.87

Qes

0.41

Qts

0.35

Levc

729.62 u H

No

3.53%

Xmax

±3 mm

(1) 8 hours in free air according to AES2-1984 R2003

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
