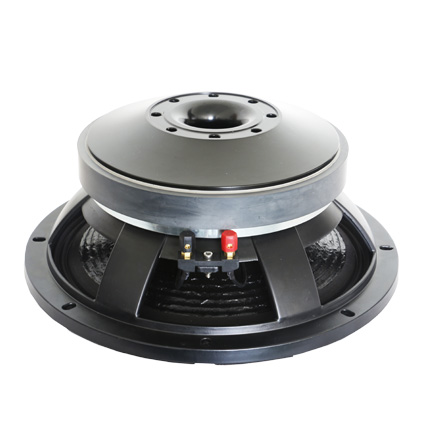

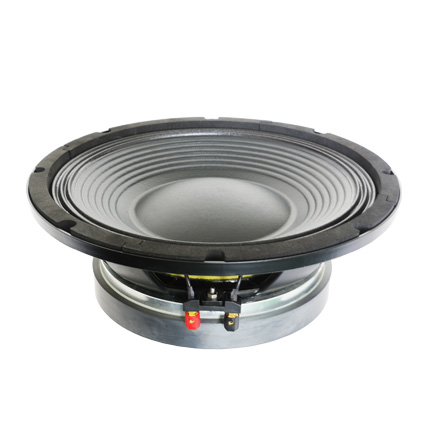

Home> PRODUCTS> Speaker  W-12-230A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

320 mm

Bolt circle diameter

300 mm

Baffle cutout diameter

286 mm

Depth

121 mm

Flange and Gasket

15 mm

Net weight

12 kg

Shipping box (single carton box)

340x340x150 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

12 inch

Nominal impedance

8 Ω

DC resistance

5.4 Ω

Nominal power handling

800 W

Continuous power handling

1600 W

Sensitivity (1W/1m)

95 ± 2dB

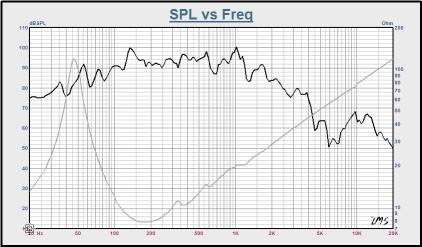

Frequency range (-10dB max)

45-2000 Hz

Voice coil diameter

100 mm

Voice coil material

Inside/Outside 1 layer Cu

Former material

TIL

Winding depth

25 mm

T yoke

22 mm

Plate

16 mm

Magnet

125 oz

Basket

Cast aluminium

THIELE & SMALL PARAMETERS

Fo

45 Hz

Revc

5.4 Ω

Sd

53.09 m M²

Vas

34.11 L

Cms

85.22 u M/N

Mmd

131.89 m Kg

Mms

138.93 g

Bl

27.6 N/A

Qms

4.83

Qes

0.296

Qts

0.279

Levc

1.155 mH

No

1.12%

Xmax

±4.5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
