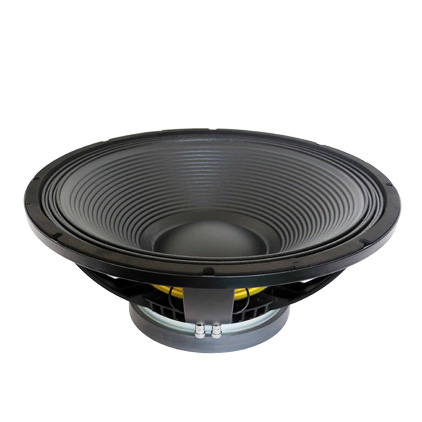

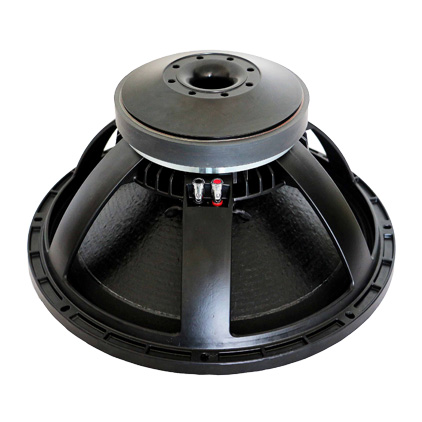

Home> PRODUCTS> Speaker  W-15-388A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

396 mm

Bolt circle diameter

376 mm

Baffle cutout diameter

356 mm

Depth

166 mm

Flange and Gasket

14 mm

Net weight

10.7 kg

Shipping box (single carton box)

420x420x185 mm

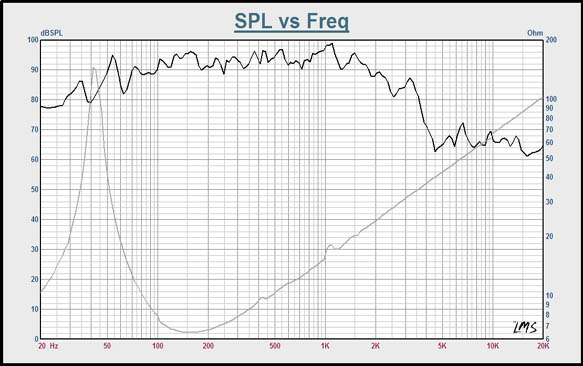

ELECTRICAL SPECIFICATIONS

Nominal diameter

15 inch

Nominal impedance

8 Ω

DC resistance

5.6 Ω

Nominal power handling

800 W

Continuous power handling

1600 W

Sensitivity (1W/1m)

97± 2dB

Frequency range (-10dB max)

40-2000 Hz

Voice coil diameter

100 mm

Voice coil material

Inside/Outside 1 layer Cu

Former material

TIL

Winding depth

25 mm

T yoke

22 mm

Plate

12 mm

Magnet

125OZ

Basket

Cast aluminium

THIELE & SMALL PARAMETERS

Fo

41 Hz

Revc

5.5 Ω

Sd

90.79 m M²

Vas

108.03 L

Cms

92.29 u M/N

Mmd

141.32 m Kg

Mms

157.02 g

Bl

22.7 N/A

Qms

8.52

Qes

0.439

Qts

0.417

Levc

1013 u H

No

1.83%

Xmax

±5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmsx=(Winding depth -Plate)/2
