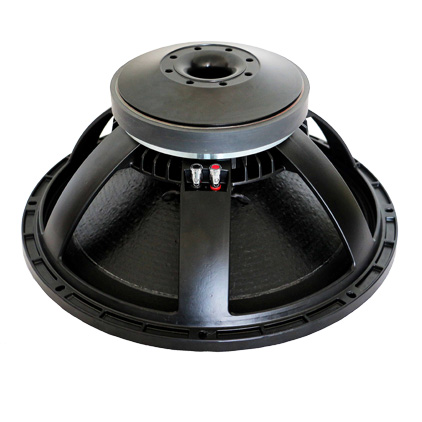

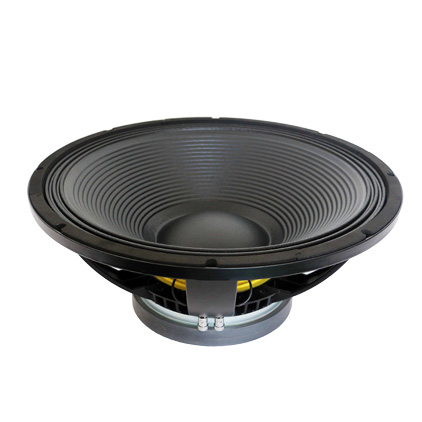

Home> PRODUCTS> Speaker  W-18-242A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

460 mm

Bolt circle diameter

440 mm

Baffle cutout diameter

188 mm

Depth

188 mm

Flange and Gasket

18 mm

Net weight

12.2 kg

Shipping box (single carton box)

490x490x220 mm

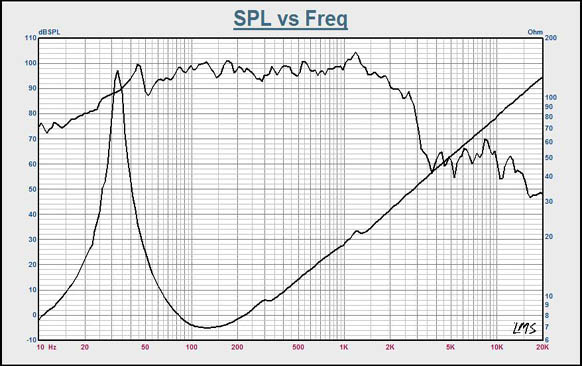

ELECTRICAL SPECIFICATIONS

Nominal diameter

18 inch

Nominal impedance

8 Ω

DC resistance

5.2 Ω

Nominal power handling

1000 W

Continuous power handling

2000 W

Sensitivity (1W/1m)

98 ± 2dB

Frequency range (-10dB max)

35-2000 Hz

Voice coil diameter

100 mm

Voice coil material

Inside/Outside 1 layer Cu

Former material

TIL

Winding depth

26 mm

T yoke

22 mm

Plate

12 mm

Magnet

220*110*25(125OZ)

Basket

Cast aluminium

Midrange & Tweeter

THIELE & SMALL PARAMETERS

Fo

35 Hz

Revc

5.2 Ω

Sd

122.54 m M²

Vas

243.2 L

Cms

114.05 u M/N

Mmd

184.2 m Kg

Mms

208.9 g

Bl

23.7 N/A

Qms

7.2

Qes

0.39

Qts

0.37

Levc

1.266 m H

No

2.06%

Xmax

±6.5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
