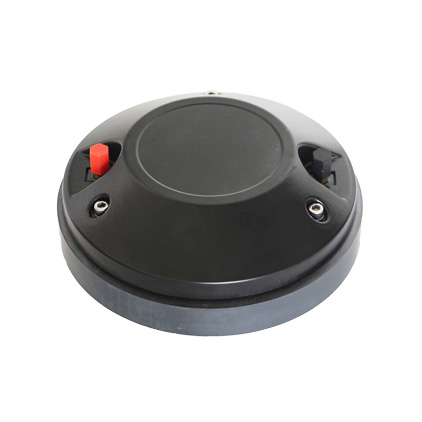

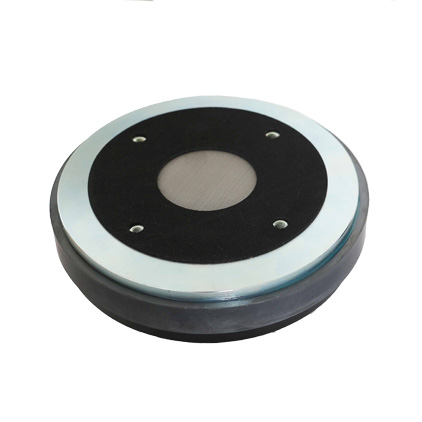

Home> PRODUCTS> HF driver  CTW-75M

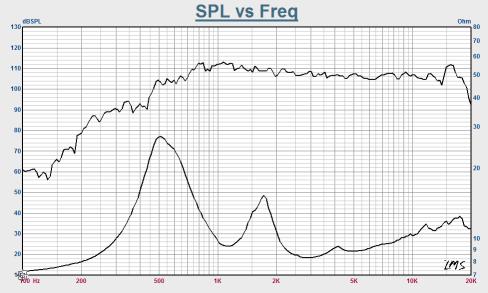

MECHANICAL SPECIFICATIONS

Overall diameter

170 mm

Total depth

66 mm

Throat Diameter

36(1.4") mm

Mounting  Type

bolting

Mounting  Type

4.4vkg

ELECTRICAL SPECIFICATIONS

Nominal impedance

8 Ω

DC resistance

6.5 Ω

Nominal power handling

80 W

Continuous power handling

100 W

Sensitivity (1W/1m)

110± 2dB

Frequency range (-10dB max)

800-20K Hz

Voice coil diameter

74.5 mm

Voice coil material

Outside 1Layer CCAR

Former material

katpon

Winding depth

2.6 mm

T yoke

9.1mm

Plate

8.4 mm

Magnet grade

∮170*∮80*20mm(63oZ)

Diaphragm  Material

Titanium/Polyimide

THIELE & SMALL PARAMETERS

Fo

800 Hz

Revc

6.5 Ω

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
