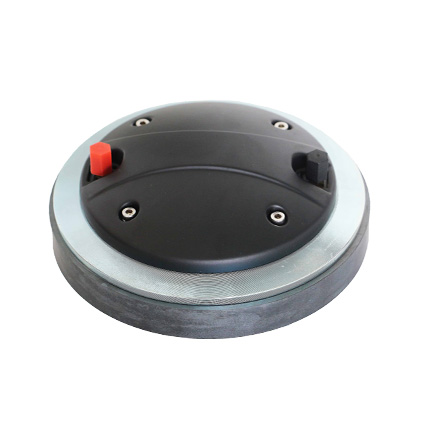

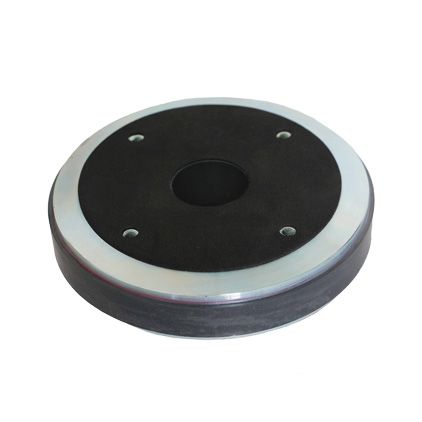

Home> PRODUCTS> HF driver  CTW-600

MECHANICAL SPECIFICATIONS

Overall diameter

156 mm

Baffle cutout diameter

156 mm

Mounting hole diameter

￠102*4-M6 mm

Throat Diameter

36(1.4") mm

Mounting  Type

Bolt-on

Net weight

3.98 kg

ELECTRICAL SPECIFICATIONS

Nominal impedance

8 Ω

DC resistance

6 Ω

Nominal power handling

80 W

Continuous power handling

100 W

Sensitivity (1W/1m)

108± 2dB

Frequency range (-10dB max)

1000-20K Hz

Voice coil diameter

65 mm

Voice coil material

Outside 1 Layer  CCAR

Former material

katpon

Winding depth

2.6 mm

T yoke

8 mm

Plate

8 mm

Magnet grade

54 OZ    Y35

Diaphragm  Material

Titanium

THIELE & SMALL PARAMETERS

Fo

1000 Hz

Revc

6 Ω

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
