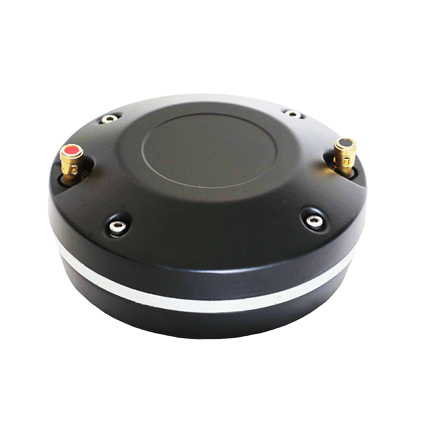

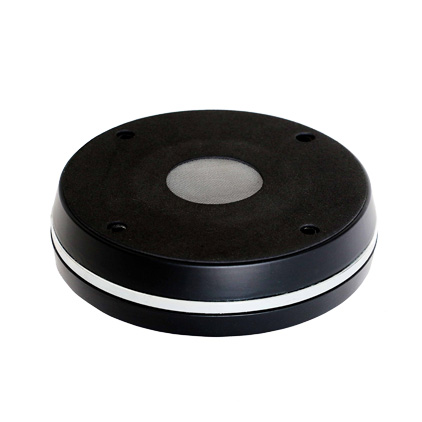

Home> PRODUCTS> HF driver  CTW-900

MECHANICAL SPECIFICATIONS

Overall diameter

131 mm

Mounting hole diameter

￠102*4-M6 mm

Throat Diameter

36(1.4") mm

Mounting  Type

Bolt-on

Net weight

2.52 kg

ELECTRICAL SPECIFICATIONS

Nominal impedance

8 Ω

DC resistance

6.5 Ω

Nominal power handling

90 W

Continuous power handling

120 W

Sensitivity (1W/1m)

108± 2dB

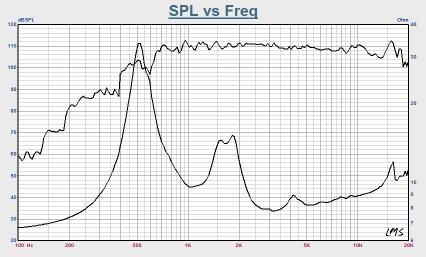

Frequency range (-10dB max)

800-20K Hz

Voice coil diameter

74.5 mm

voice coil material

Outside 1 Layer CCAR

Former material

katpon

Winding depth

2.6 mm

T yoke

9 mm

Plate

8.8 mm

Magnet grade

NdFeB 38H

Diaphragm  Material

Titanium

THIELE & SMALL PARAMETERS

Fo

700 Hz

Revc

6.5 Ω

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
