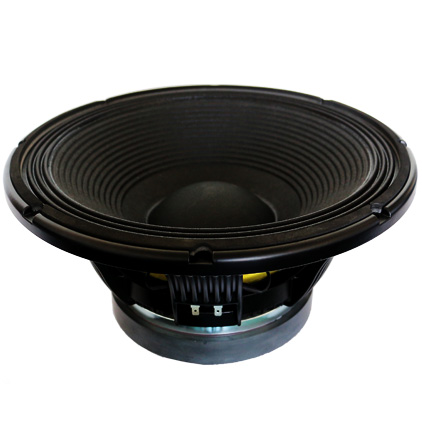

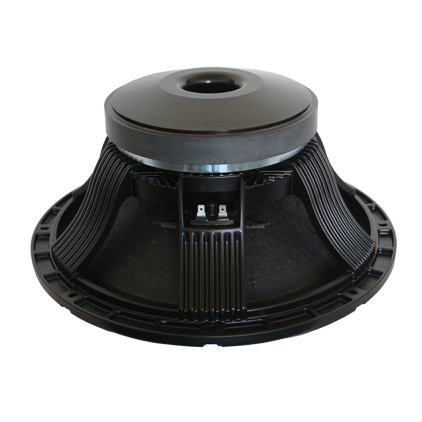

Home> PRODUCTS> Speaker  W-15-392A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

400 mm

Bolt circle diameter

378 mm

Baffle cutout diameter

360 mm

Depth

173 mm

Flange and Gasket

18 mm

Net weight

12.3 kg

Shipping box (single carton box)

430x430x220 mm

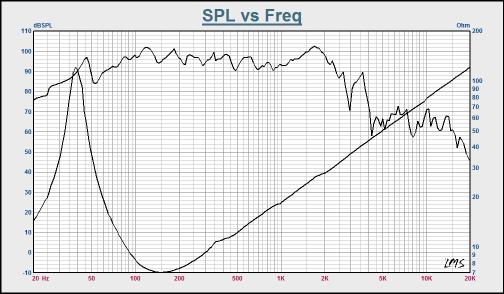

ELECTRICAL SPECIFICATIONS

Nominal diameter

15 inch

Nominal impedance

8 Ω

DC resistance

4.9 Ω

Nominal power handling

800 W

Continuous power handling

1600 W

Sensitivity (1W/1m)

98± 2dB

Frequency range (-10dB max)

38-2500 Hz

Voice coil diameter

98 mm

Voice coil material

Inside/Outside 1 layer cu

Former material

GF

Winding depth

24 mm

T yoke

22 mm

Plate

12 mm

Magnet

220*110*25(125OZ)

Basket

Cast aluminium

Midrange & Tweeter

THIELE & SMALL PARAMETERS

Fo

38 Hz

Revc

4.9 Ω

Sd

88.66 m M²

Vas

118.24 L

Cms

105.91 u M/N

Mmd

145.78 m Kg

Mms

160.9 g

Bl

25.17 N/A

Qms

5.3

Qes

0.3

Qts

0.28

Levc

1.194 m H

No

2.17%

Xmax

±6 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
