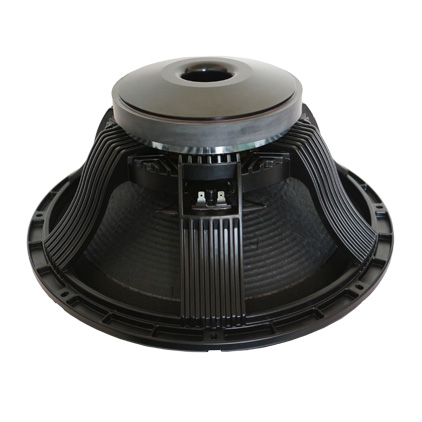

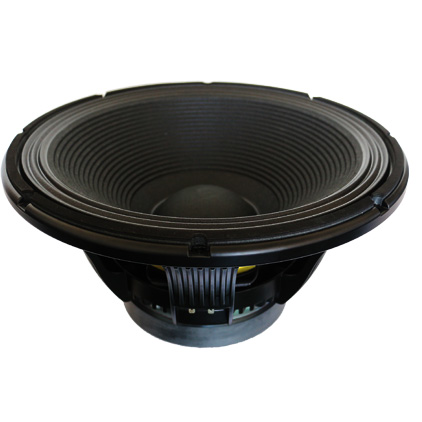

W-18-244A-8-100
Specifications
|
MECHANICAL SPECIFICATIONS
|
||
|
Overall diameter 465 mm |
Bolt circle diameter 442.7 mm |
Baffle cutout diameter 423.8 mm |
|
Depth 194 mm |
Flange and Gasket 18 mm |
Net weight 12.8 kg |
|
Shipping box (single carton box) 500x500x250 mm |
|
|
|
ELECTRICAL SPECIFICATIONS
|
||
|
Nominal diameter 18 inch |
Nominal impedance 8 Ω |
DC resistance 4.9 Ω |
|
Nominal power handling 1000 W |
Continuous power handling 2000 W |
Sensitivity (1W/1m) 98 ± 2dB |
|

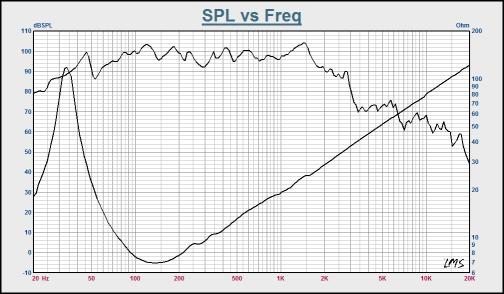

Frequency range (-10dB max) 33-2000 Hz |
Voice coil diameter Inside/Outside 1 layer cu |
Former material GF |
|
Winding depth 24 mm |
T yoke 22 mm |
Plate 12 mm |
|
Magnet 220*110*25(125OZ) |
Basket Cast aluminium |
Midrange & Tweeter |
|
THIELE & SMALL PARAMETERS
|
||
|
Fo 33 Hz |
Revc 4.9 Ω |
Sd 122.54 m M2 |
|
Vas 294.52 L |
Cms 138.12 u M/N |
Mmd 141.79 m Kg |
|
Mms 166.46 g |
Bl 24.17 N/A |
Qms 5.25 |
|
Qes 0.29 |
Qts 0.27 |
Levc 1.215 m H |
|
No 3.57% |
Xmax ±6 mm |
|
|
(1) 24 hours in free air according to EIA-426B (2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2 |
||
