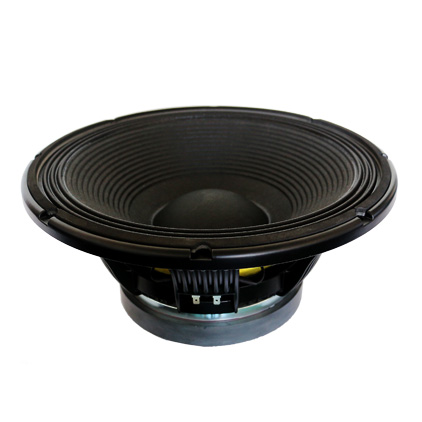

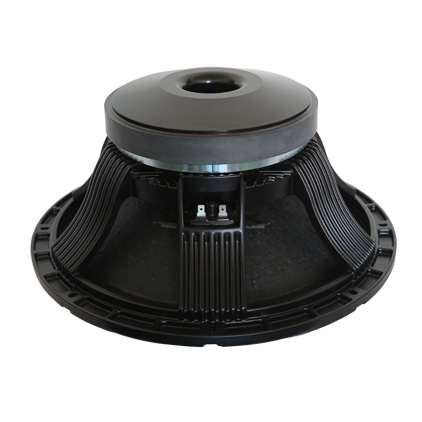

Home> PRODUCTS> Speaker  W-12-233A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

315.5 mm

Bolt circle diameter

299 mm

Baffle cutout diameter

238.5 mm

Depth

141 mm

Flange and Gasket

14 mm

Net weight

11.2 kg

Shipping box (single carton box)

340x340x185 mm

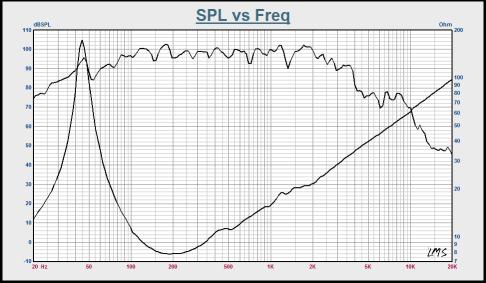

ELECTRICAL SPECIFICATIONS

Nominal diameter

12 inch

Nominal impedance

8 Ω

DC resistance

4.9 Ω

Nominal power handling

500 W

Continuous power handling

1000 W

Sensitivity (1W/1m)

98 ± 2dB

Frequency range (-10dB max)

45-3000 Hz

Voice coil diameter

98 mm

Voice coil material

Inside/Outside 1 layer cu

Former material

GF

Winding depth

24 mm

T yoke

22 mm

Plate

12 mm

Magnet

220*110*25(125OZ)

Basket

Cast aluminium

Midrange & Tweeter

THIELE & SMALL PARAMETERS

Fo

45 Hz

Revc

4.9 Ω

Sd

53.09 m M²

Vas

53.6 L

Cms

105.97 u M/N

Mmd

52.7 m Kg

Mms

59.7 g

Bl

22.3 N/A

Qms

6.7

Qes

0.35

Qts

0.33

Levc

1.194 m H

No

2.17%

Xmax

±5 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
