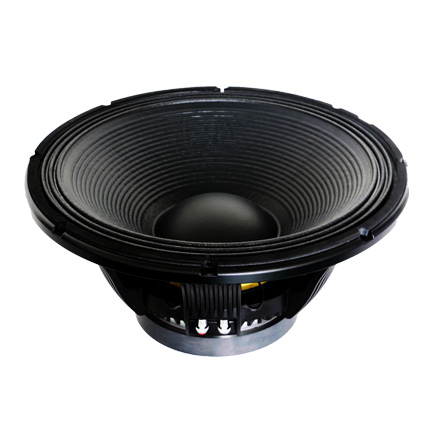

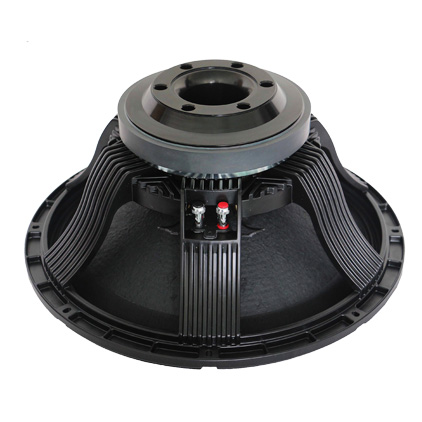

Home> PRODUCTS> Speaker  W-18-245A-8-100

MECHANICAL SPECIFICATIONS

Overall diameter

465 mm

Bolt circle diameter

442.7 mm

Baffle cutout diameter

423.8 mm

Depth

195 mm

Flange and Gasket

18 mm

Net weight

12.8 kg

Shipping box (single carton box)

500x500x250 mm

ELECTRICAL SPECIFICATIONS

Nominal diameter

18 inch

Nominal impedance

8 Ω

DC resistance

5.4 Ω

Nominal power handling

1200 W

Continuous power handling

2400 W

Sensitivity (1W/1m)

98± 2dB

Frequency range (-10dB max)

45-2000 Hz

Voice coil diameter

98 mm

Voice coil material

Inside/Outside 1 layer cu

Former material

BAF

Winding depth

24 mm

T yoke

23 mm

Plate

12 mm

Magnet

220*110*25(125OZ)

Basket

Cast aluminium

Midrange & Tweeter

THIELE & SMALL PARAMETERS

Fo

45 Hz

Revc

5.4 Ω

Sd

122.54 m M²

Vas

115.06 L

Cms

53.96 u M/N

Mmd

192.69 m Kg

Mms

217.35 g

Bl

26.47 N/A

Qms

7.23

Qes

0.48

Qts

0.45

Levc

1.45 m H

No

2.28%

Xmax

±6 mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
