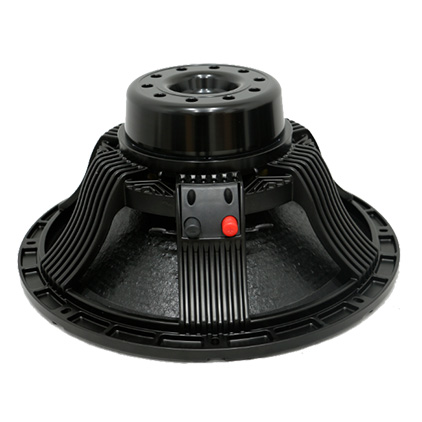

W-15-421A-8-100

Nominal power handling
voice coil diameter
Frequency range
Sensitivity

Specifications

MECHANICAL SPECIFICATIONS





Overall diameter

400.5 mm

Bolt circle diameter

378 mm

Baffle cutout diameter

360 mm

Depth

172 mm

Flange and Gasket

18 mm

Net weight

9.45 kg

Shipping box (single carton box)

430x430x250 mm

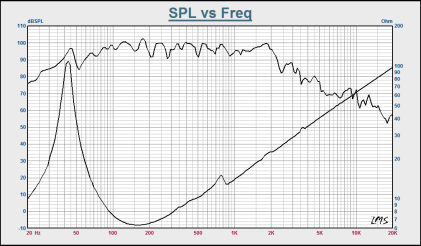

ELECTRICAL SPECIFICATIONS



Nominal diameter

15 inch

Nominal impedance

8 Ω

DC resistance

5.4 Ω

Nominal power handling

800 W

Continuous power handling

1600 W

Sensitivity (1W/1m)

98 ± 2dB

Frequency range (-10dB max)

44-2500 Hz

Voice coil diameter

100 mm

Voice coil material

Outside 1 Layer CU

Former material

BAF

Winding depth

25 mm

T yoke

15 mm

Plate

12 mm

Magnet

NDFEB

Basket

Cast aluminium

THIELE & SMALL PARAMETERS



Fo

44 Hz

Revc

5.4 Ω

Sd

88.14 m M2

Vas

92.5 L

Cms

83.85 u M/N

Mmd

137.87m Kg

Mms

152.92 g

Bl

21.12 N/A

Qms

5.11

Qes

0.51

Qts

0.46

Levc

1.157 m H

No

1.52%

Xmax

±6mm

(1) 24 hours in free air according to EIA-426B

(2) 1 inch=25.4mm

(3)Xmax=(Winding depth -Plate)/2
